what is an annular cutter arbor

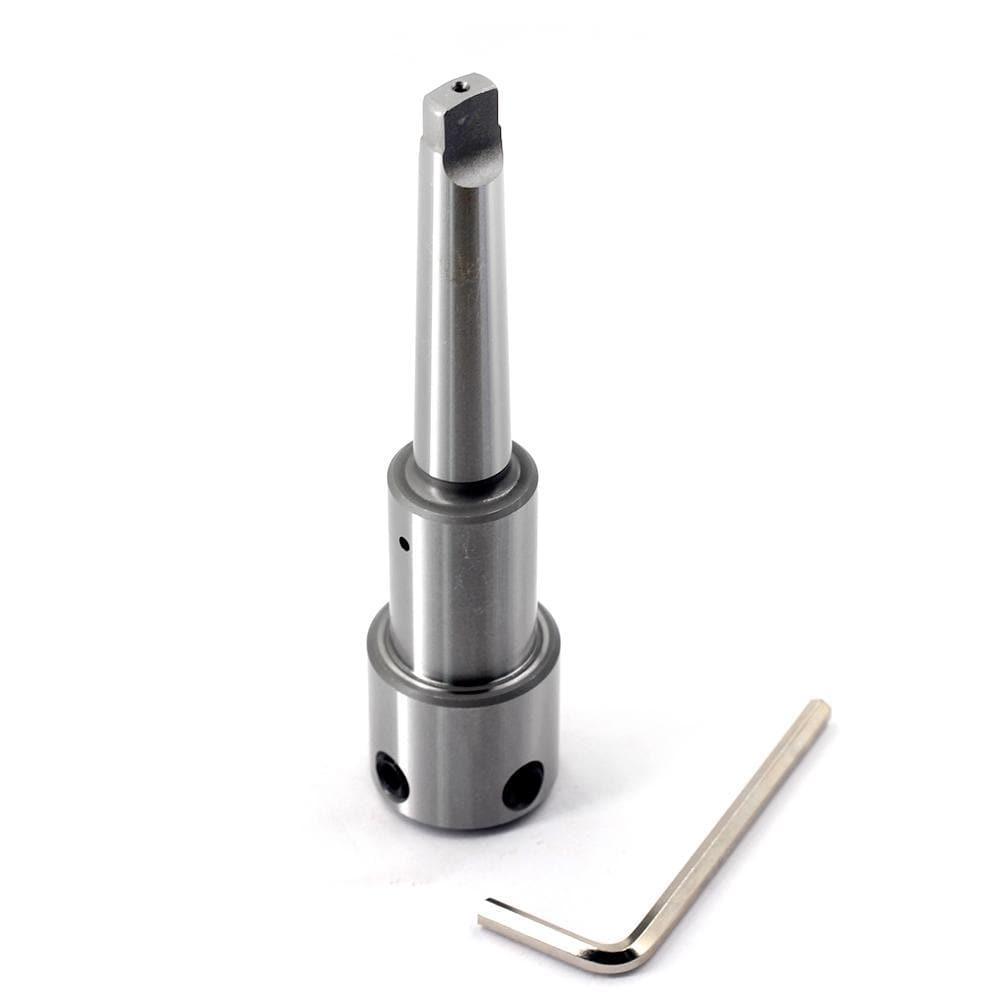

An annular cutter arbor, also known as an annular cutter holder or annular cutter shank, is a tool used to securely hold and drive annular cutters during metalworking operations. It is an essential component in annular cutting systems and is designed to provide stability, accuracy, and efficient cutting performance.

An annular cutter is a specialized type of drill bit used for creating large-diameter holes in metal. Unlike traditional twist drill bits that remove material in a continuous spiral, annular cutters remove material in the form of a cylindrical slug, leaving a clean and precise hole with minimal burrs or chips. Annular cutters are commonly used in applications such as metal fabrication, construction, and maintenance and repair work.

The annular cutter arbor serves as the interface between the annular cutter and the power tool, typically a magnetic drill press or a dedicated annular cutting machine. It consists of several key components:

1. Shank: The shank is the portion of the arbor that connects to the chuck of the power tool. It is typically cylindrical and may have a specific diameter and length to ensure compatibility with the drill press or cutting machine. The shank is often designed with flats or grooves to prevent slippage and ensure a secure grip.

2. Pilot Pin: The pilot pin is a small, removable metal pin that extends from the arbor's shank. Its purpose is to guide the cutting action and ensure accurate alignment of the annular cutter. The pilot pin fits into the center hole of the annular cutter, providing stability and preventing the cutter from wandering or deviating from the desired cutting path.

3. Retention Mechanism: The retention mechanism refers to the method used to secure the annular cutter onto the arbor. It typically involves a threaded connection or a locking mechanism, ensuring that the cutter remains securely attached during the cutting process.

4. Coolant Delivery: Some annular cutter arbors feature coolant delivery channels or holes that allow for the efficient flow of cutting fluid or coolant. This helps to lubricate the cutting edges, reduce heat buildup, and prolong the life of the annular cutter.

When using an annular cutter arbor, it is important to choose the correct arbor size and type to match the specific annular cutter being used. Arbors come in various sizes and configurations to accommodate different cutter diameters and designs.

To use an annular cutter arbor, the operator would typically insert the pilot pin into the center hole of the annular cutter and secure it using the retention mechanism. The arbor is then inserted into the chuck of the power tool, ensuring a tight and secure fit. The cutting operation can then be performed by activating the power tool and applying appropriate feed pressure.

In summary, an annular cutter arbor is a tool used to securely hold and drive annular cutters during metalworking operations. It provides stability, accuracy, and efficient cutting performance. The arbor consists of a shank, a pilot pin, a retention mechanism, and may include coolant delivery features. Choosing the correct arbor size and type is crucial for proper compatibility with the annular cutter and the power tool being used.
